Best Ham Radio Base Station for Beginners

What a ham radio base station actually is

Unlike a handheld, a base station is optimized to stay put and perform. The four pieces are always the same:

• The radio (transceiver) — a mobile rig or a dedicated HF rig run indoors.
• Power — most ham radios need a regulated 13.8V DC supply; you cannot plug a mobile rig straight into a wall outlet. HF desktop rigs like the IC-7300 either include or expect the same 13.8V supply.
• Antenna — a fixed vertical, dipole, or beam mounted outdoors and up high. Height and a clear location matter more than radio wattage.
• Coax and grounding — good feedline (LMR-240 or better for VHF/UHF runs) and a proper ground for safety.

The single biggest upgrade over a handheld is the antenna. A 5-watt HT with a rubber duck might reach a mile or two; the same power into a rooftop vertical can hit repeaters across a metro area.

VHF/UHF base vs HF base: which do you need?

These solve different problems, so decide by what you want to do on the air.

If you just earned your Technician license and want to join local nets this week, build a VHF/UHF base — it is cheaper, the antennas are small, and you get full privileges. If your goal is long-distance HF and you plan to upgrade to General, start looking at an HF rig now. Many operators run both. Compare mobiles you can repurpose as a base in our dual-band mobile guide.

Building a VHF/UHF base from a mobile radio

The cheapest reliable base station is a dual-band mobile transceiver run indoors. You add a power supply and a base antenna, and you have a capable 2m/70cm station for a fraction of an HF setup.

What you need:

• A dual-band mobile — the Icom IC-2730A and Yaesu FT-7900R are proven, easy-to-use choices; the BTECH UV-25X4 is a budget option.
• A regulated 13.8V DC power supply rated for the radio's current draw (a 50W mobile can pull 10-12A on transmit, so size a 20-30A supply).
• A base vertical antenna like the Comet GP-3 or Diamond X50NA, mounted outdoors and as high as practical.
• Low-loss coax — use LMR-240 or better; thin RG-58 wastes signal on a longer run to a rooftop.

This setup gives you far more reach into repeaters than any handheld, and the mobile radio can later move to your car if you want. For antenna choices, see our 2 meter antenna guide.

Building an HF base for 10 meters and beyond

HF is where long-distance contacts happen. A dedicated HF transceiver is a bigger investment but opens up worldwide work as your license grows.

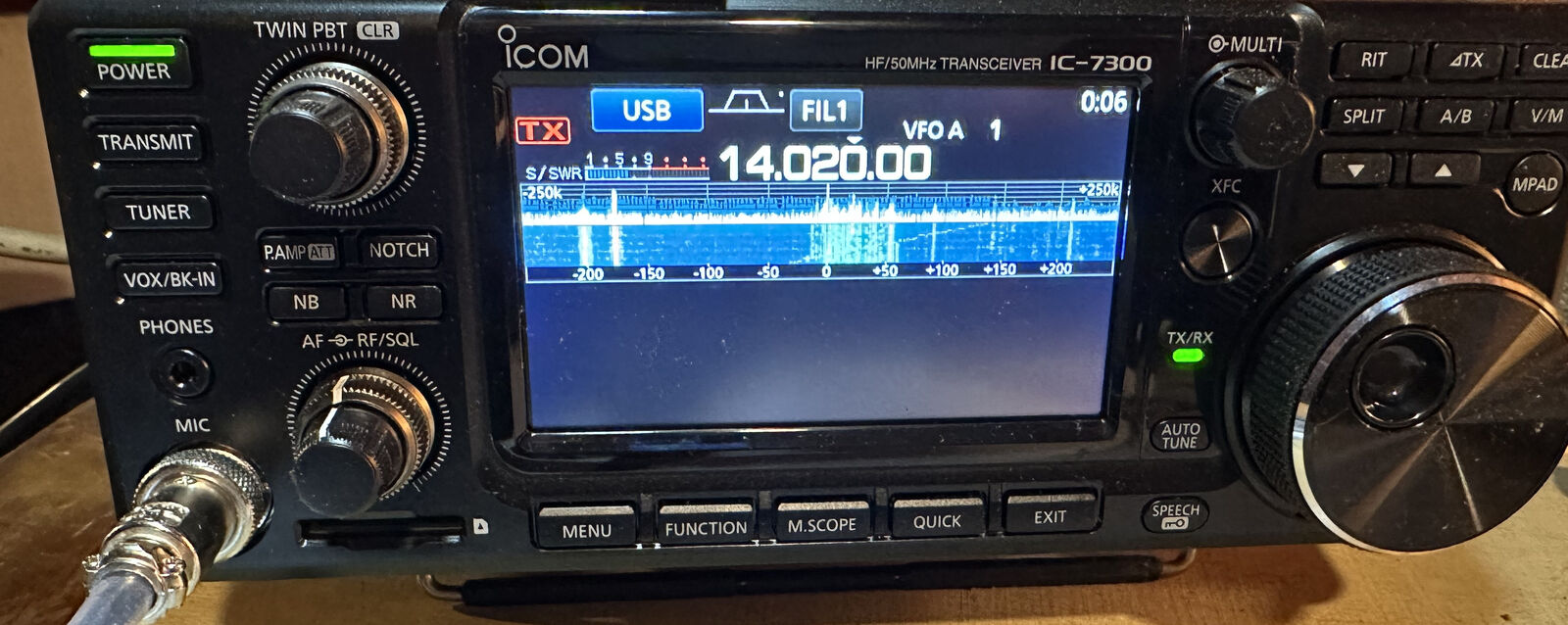

• Icom IC-7300 — the default beginner-through-intermediate HF rig. Its touchscreen and built-in spectrum scope make it genuinely easy to learn on, and it has a built-in antenna tuner for minor SWR correction.
• Xiegu G90 — a budget 20W (low-power, not full QRP) HF rig with a built-in tuner; a low-cost way to get on HF and learn.
• Yaesu FT-710 — a modern, capable rig in the same class as the IC-7300 with strong receiver performance.
• Icom IC-718 — a simple, no-frills 100W HF radio that has been a reliable first HF rig for years (no built-in tuner).

All of these need a 13.8V supply, an HF antenna (a simple wire dipole or an end-fed is a great start), and often an antenna tuner unless the rig has one built in. The IC-7300 and G90 include tuners for small mismatches; a dedicated external tuner handles wider ranges.

The Technician HF reality: mostly 10 meters

This surprises a lot of new operators, so be clear-eyed before buying an HF rig. A US Technician license gives you full VHF/UHF privileges but only limited HF access. On HF your main phone (voice) privilege is a slice of the 10 meter band (28.300-28.500 MHz SSB), plus some CW privileges on 80, 40, 15, and 10 meters.

That means an HF rig on a Technician license is mostly a 10 meter voice radio (which can be great when the band is open during solar peaks) plus a CW radio elsewhere. The real HF payoff — 20 meters, 40 meters phone, worldwide DX — arrives when you upgrade to General. Buying an IC-7300 as a Technician is a perfectly good plan if you intend to upgrade; if you only want local comms, spend the money on a great VHF/UHF base instead. See the full privilege breakdown in our Technician band plan guide.

What else you need: power, antenna, coax, and ground

The radio is only part of the bill. Budget for the supporting gear or the station won't work well.

1. Power supply (13.8V DC, regulated): Size it above your radio's peak transmit current. A 30A supply comfortably runs most mobiles and 100W HF rigs.
2. Antenna: A base vertical for VHF/UHF, or a wire dipole/vertical for HF. Get it outdoors and high; height beats watts.
3. Coax: Use low-loss cable — LMR-240 for typical VHF/UHF base runs, better still for longer runs. Loss climbs with frequency and length, so a cheap thin cable can eat much of your signal. Estimate it with our coax loss calculator.
4. Grounding: Bond your equipment and antenna system to a proper ground per the National Electrical Code (NEC Article 810) for lightning and electrical safety.
5. SWR meter or analyzer: To confirm the antenna is tuned before you transmit at full power. See our SWR tuning guide.

Common beginner mistakes to avoid

A few predictable errors cost new operators money and performance:

• Skimping on the antenna and mounting it low. The antenna and its height do more for range than any radio spec. Put the money and effort here.
• Trying to power a mobile from a wall outlet directly. You need a regulated 13.8V DC supply, not mains AC.
• Using thin RG-58 for a long rooftop run. Loss adds up fast on UHF; use LMR-240 or better.
• Buying an HF rig expecting worldwide contacts on a Technician license. On HF you are mostly limited to 10 meters until you upgrade to General.
• Transmitting before checking SWR. High SWR can damage your radio's finals — verify with a meter or analyzer first.
